型 号 Model： |
FT-1108-C001 |
|
产品名称 Product Name: |

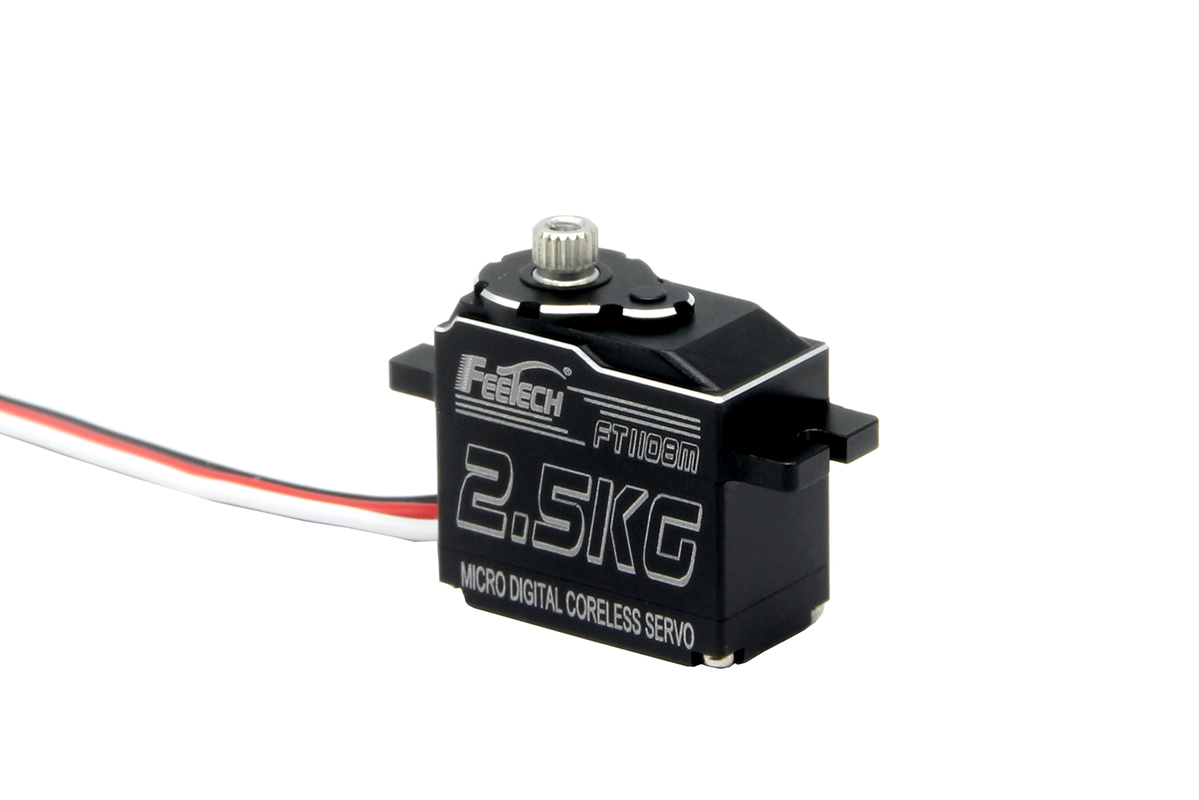

6V 2.5kg数码舵机/6V 2.5kg- -cm Digital Servo |
| 存储温度 Storage Temperature Range | -20℃～70℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A：21.2mm B：11.4mm C：20.2mm . |
|
重量 Weight: |
9.8± 1g |
| 齿轮类型 Gear type: | Metal Gear |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T/3.95mm |
| 摇臂虚位The rocker phantom： | 0° |
| 外壳 Case: | Aluminum |
| 舵机线 Connector wire: | 6.5±0.5CM |
| 马达 Motor: | Coreless Motor |
|
工作电压Operating Voltage Range: |
4.8-7.4V |
| 静态电流Idle current (at stopped) . | 6mA@6V |
|
空载速度 No load speed: |
0. 055sec/ 60°@6V |
| 空载电流 Runnig current(at no load) : | 90mA@6V |
|
堵转扭矩 Peak stall torque: |
2.5kg.cm@6V |
|
额定扭矩 Rated torque: |
0.7kg.cm@6V |
| 堵转电流 Stall current: | 0.9A@6V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Digital comparator |
| 脉冲宽度范围Pulse width range | 500~2500usec |
| 停止位置Stop position | 1500 μsec |
| 旋转角度Running degree | 180° (at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μsec |
| 旋转方向Rotating direction | 逆时针 Counterclockwise(在500→2500 μsec) |
| 详细规格书下载Download detailed specifications: | |
| 外形图 The Drawings: |
