型 号 Model： |
FT5478M |
|
产品名称 Product Name: |
6V 9公斤数码舵机/Product Name：6V 9kg/cm Digital Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：40.1mm B：20.0mm C：28.5mm |
|
重量 Weight: |
36.5g（1.28oz） |
| 齿轮类型 Gear type: | Metal Gear |
| 机构极限角度 Limit angle: |
220° |
| 轴承 Bearing: | 2 Ball bearings |
| 出力轴 Horn gear spline: | 25T |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | Engineering plastics |
| 舵机线 Connector wire: | 150MM |
| 马达 Motor: | Coreless motor |
| 防水性能 Splash water resistance： | YES |
|
工作电压Operating Voltage Range: |
4.8-6V |
|
空载速度 No load speed: |
0.1sec/60°@6V |
| 空载电流 Runnig current(at no load) : | 150 mA@6V |
|
堵转扭矩 Peak stall torque: |
9kg.cm@6V |
|
额定扭矩 Rated torque: |
3kg.cm@6V |
| 堵转电流 Stall current: | 2200mA@6V |
| 控制信号 Command signal: | Pulse width modification |
| 放大器类型Amplifier type | Digital Controller |
|
脉冲宽度范围Pulse width range |
900~ 2100usec |
|
中立位置Neutral position |
1500 μsec |
|
旋转角度Running degree |
120° (when 900～2100 µ sec) |
| 死区宽度Dead band width | 2 μsec |
| 旋转方向Rotating direction | clockwise (when 1000～2000 µsec) |
| 详细规格书下载Download detailed specifications: | |

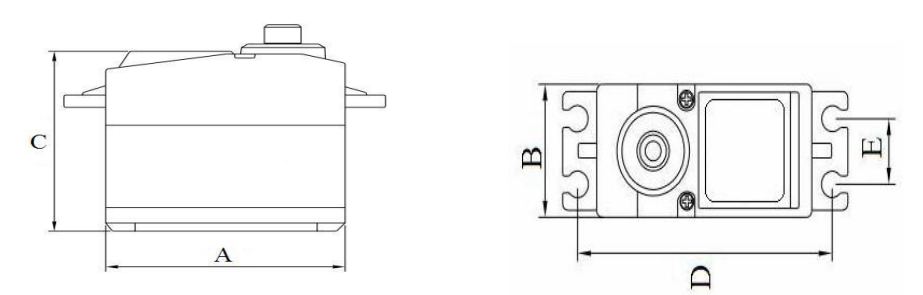

| 外形图 The Drawings: |
